Overview
Brand: Wilwood Disc Brakes
Manufacturer’s Part Number: 140-13888-D
Part Type: Disc Brake Kits
Product Line: Wilwood AERO4-MC4 Big Brake Rear Parking Brake Kits
Summit Racing Part Number: WIL-140-13888-D
UPC: 889545071726
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.):5 x 4.50 in.
Brake Rotor Bolt Pattern (mm): 5 x 114.30mm
Rear Rotor Included: Yes
Rear Rotor Style: Cross-drilled/Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 14.00 in./355.60mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Black
Brake Pads Included: Yes
Friction Material Name: BP-20
Parking Brake Provision: Yes

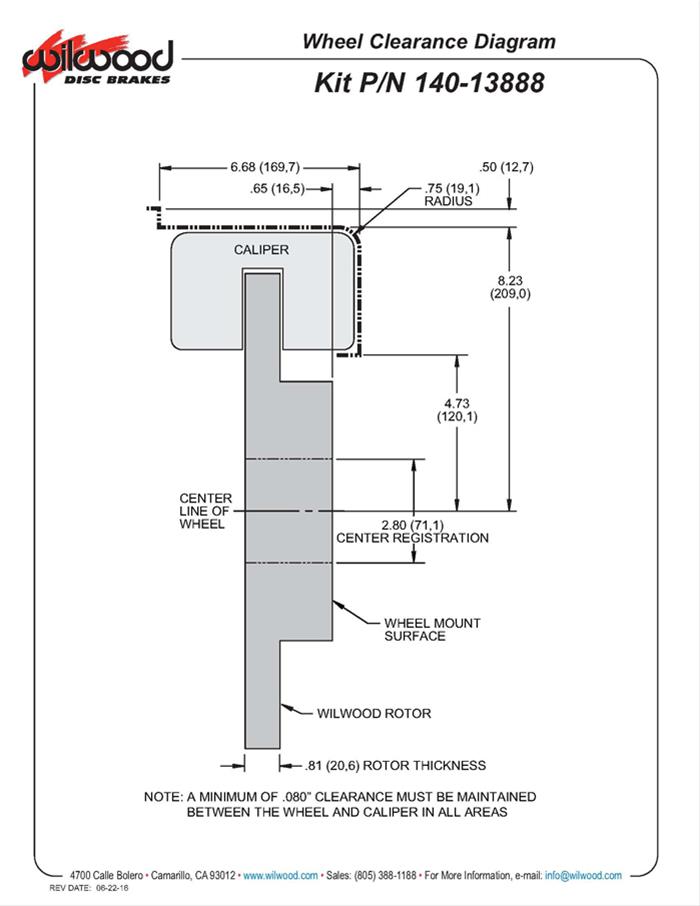

Minimum Recommended Wheel Diameter (in.): 18 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: Yes
Quantity: Sold as a kit.

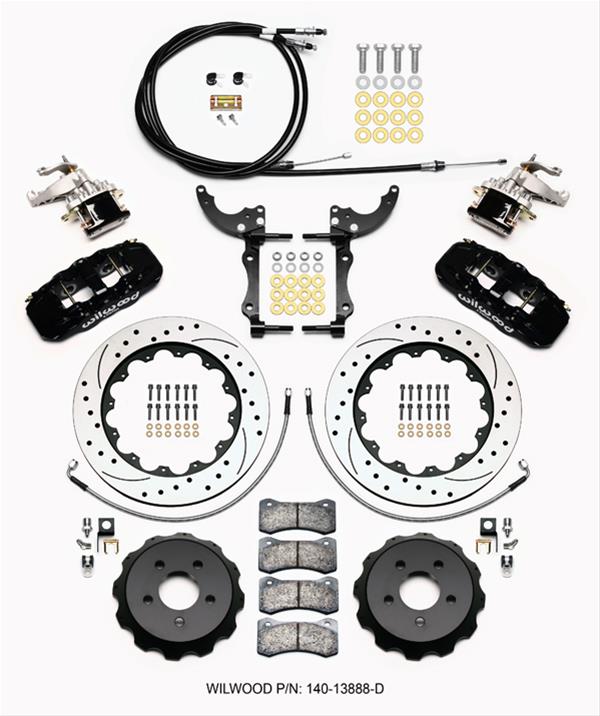

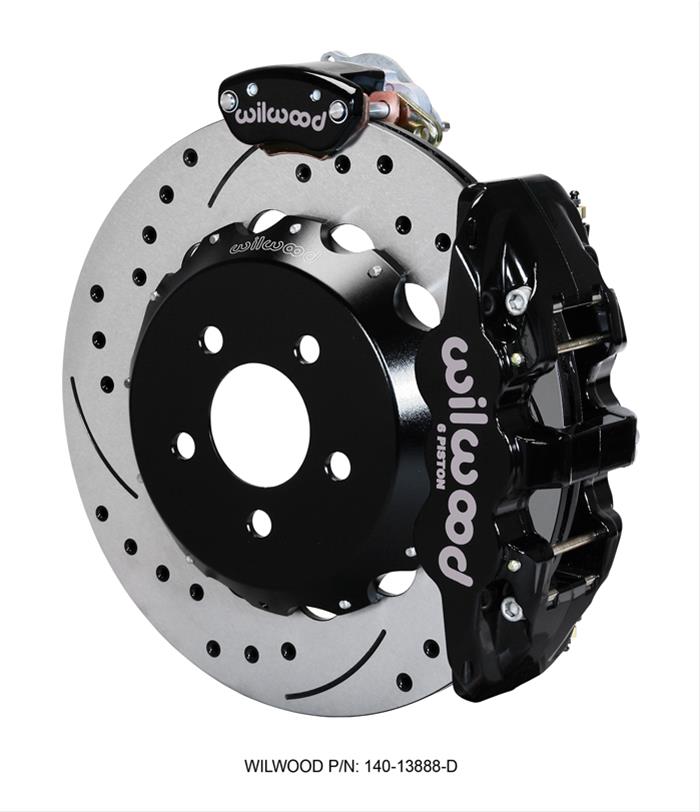

Wilwood AERO4-MC4 Big Brake Rear Parking Brake Kits
Wilwood AERO4-MC4 Big Brake rear parking brake kits replace your factory disc brakes and use the OE parking brake assembly as a complement to front big brake upgrades on late model high performance vehicles. The kits feature W4AR calipers, BP-10 compound pads, and oversized 14 in. rotors for high-capacity braking and are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. They are offered with slotted or drilled and slotted rotors, as well as black or red powdercoated calipers. Wilwood AERO4-MC4 Big Brake rear parking brake kits provide enhanced brake performance, increased durability, and high-tech style.
