Ford 9 Inch Bolt-In Rear End Axle, 68-72 GM X-Body Multileaf

In Stock

$750.00

Rear Position, 31 Axle Splines, Semi-Floating Axle Type
  • Designed to replace the original GM X-Body rearend housing
  • Compatible with the stock multi-leaf spring rear suspension found in your 1968-1972 Chevy II / Nova / Ventura
  • New billet steel housing ends with oil seal surface (“Big New Ford” Torino-style)
  • 3″ O.D. DOM 3/16″ wall axle tubes, 1/2″-20 wheel studs, 2″ long
  • 5 x 4-3/4″ Wheel bolt pattern, 31-spline axles w/ bearings, studs & retainers
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist

+1 (917) 740-4358Start Live Chat

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:

Description

Product Summary

Rear Position, 31 Axle Splines, Semi-Floating Axle Type
  • Designed to replace the original GM X-Body rearend housing
  • Compatible with the stock multi-leaf spring rear suspension found in your 1968-1972 Chevy II / Nova / Ventura
  • New billet steel housing ends with oil seal surface (“Big New Ford” Torino-style)
  • 3″ O.D. DOM 3/16″ wall axle tubes, 1/2″-20 wheel studs, 2″ long
  • 5 x 4-3/4″ Wheel bolt pattern, 31-spline axles w/ bearings, studs & retainers

Installation Tips

  • Requires brake kit meant for Staggered style rearends.

Details

These bolt-in rear axle packages are designed to replace the original GM X-Body rearend housing and are compatible with the stock multi-leaf spring rear suspension found in your ’68-’72 Chevy II/Nova/Ventura. The major advantages gained by upgrading to a Ford 9″ axle include a) greatly increased strength (reliability), b) the variability of the housing to accept almost any gear ratio from 2.47:1 to 6.14:1, c) a drop-out third member for ease of service, and d) steel axle retainers keep the axle/wheel in place in the event of axle failure. Here are the features you’ll find in our fabricated Ford 9 Inch axle kits:

  • New stamped steel housing center piece
  • New billet steel housing ends with oil seal surface (“Big New Ford” Torino-style)
  • 3″ O.D. DOM 3/16″ wall axle tubes

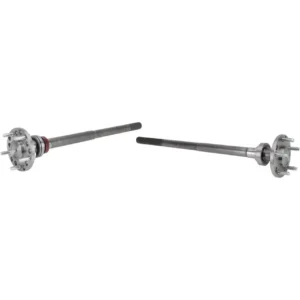

  • 31-spline axles w/ bearings, studs & retainers
  • 1/2″-20 wheel studs, 2″ long
  • 5 x 4-3/4″ wheel bolt pattern
  • Jig welded suspension brackets for stock style multi-leaf suspension
  • Built to stock width

Add third member and brake kit of your choice (both sold separately) to complete your installation.

KEY SPECS
MFG. Part # 99026872
Brand Speedway Motors
Position Rear
Axle Splines 31
Axle Type Semi-Floating
Brakes Included No
Wheel Studs Included Yes
Wheel Bolt Pattern (in.) 5×4.75 in.
Finish Natural
Tube O.D. 3″
Housing Material Steel
Bolt Pattern 5 on 4.75″
Hardware Included Yes
Rotors Included No

GENERAL
Bearings Included Yes
Seals Included Yes
Differential Included No
Ring Gear Size 9 Inch
Sold in Quantity Kit
