Brand: QA1
Manufacturer’s Part Number: HK43-FMM2
Part Type: Suspension Handling Packages
Product Line: QA1 Level 3 Handling Suspension Kits
Summit Racing Part Number: QA1-HK43-FMM2
UPC: 806990174338
Front Coil Springs Included: Yes
Rear Coil Springs Included: Yes
Rear Leaf Springs Included: No
Front Shocks/Struts Included: Yes

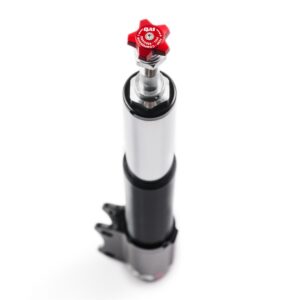

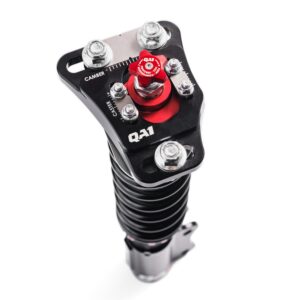

Front Shock Type: Double adjustable coilover
Rear Shocks/Struts Included: Yes
Rear Shock Type: Adjustable coilover

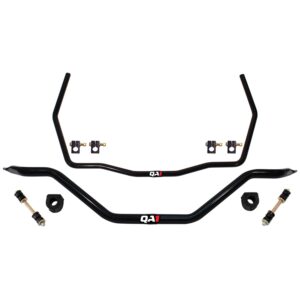

Front Sway Bar Included: Yes
Front Sway Bar Color: Black
Front Sway Bar Type: Hollow
Front Sway Bar Diameter (in.): 1.250 in.
Front Sway Bar Diameter (mm): 31.75 mm
Rear Sway Bar Included: Yes
Rear Sway Bar Color: Black
Rear Sway Bar Type: Solid
Rear Sway Bar Diameter (in.): 1.000 in.
Rear Sway Bar Diameter (mm): 25.40 mm
Tie Rod Sleeves Included: No
End Link Bushings Included: Yes
Rear Leaf Spring Bushings Included: No
Sway Bar Bushings Included: Yes
Upper Trailing Arms Included: Yes

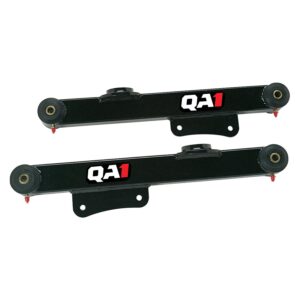

Lower Trailing Arms Included: Yes
Trailing Arm Mount Braces Included: No
Panhard Bar Included: No
Torque Arm Included: No
Upper Control Arms Included: No
Lower Control Arms Included: Yes
Control Arm Style: Tubular
Control Arm Material: Steel
Control Arm Color: Black
Front Strut Tower Bar Included: No
K-Member Included: Yes
K-Member Support Brace Included: No
Rear Strut Tower Bar Included: No
Subframe Connectors Included: No
Chassis Stiffener Included: No
Calipers Included: No
Rotors Included: No
Brake Pads Included: No
Brake Lines Included: No
Wheel Studs Included: No
Center Link Included: No
Spindles Included: No
Inner Tie Rod Ends Included: No
Outer Tie Rod Ends Included: No
Mounting Hardware Included: Yes
Quantity: Sold as a kit.
Notes: Kit will retain factory track width. Not compatible with Cobra IRS. Bump steer kit included.
Top performance is the desired goal of many automotive upgrades—precisely what QA1 Level 3 handling suspension kits deliver. Compared with the Level 1 and 2 packages, these heavy-duty assemblies offer additional control components, as well as stiffer springs to maximize your cornering ability and handling on average-weight small block and LS-powered vehicles with stock trim. QA1 Level 3 kits are available with or without shocks and struts—giving you the flexibility to obtain the shocks or struts and spring rates you want. Many of these Level 3 bolt-in components are built for race-quality performance, and all will work seamlessly with whatever OEM parts you attach them to.
