RideTech 1978-88 GM G-Body Coilover Suspension Systems 11320201

In Stock

$3,055.00

Suspension Handling Packages, CoilOver, Buick, Chevrolet, GMC, Oldsmobile, Pontiac, Kit

In Stock

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist

Have a Question? Ask a Specialist

+1 (917) 740-4358Start Live Chat

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Description

Overview

Brand: RideTech

Manufacturer’s Part Number: 11320201

Part Type: Suspension Handling Packages

Product Line: RideTech 1978-88 GM G-Body Coilover Suspension Systems

Summit Racing Part Number: ART-11320201

UPC: 840123505200

Front Coil Springs Included: Yes

Rear Coil Springs Included: Yes

Rear Leaf Springs Included: No

Front Shocks/Struts Included: Yes

Front Shock Type: Single adjustable monotube coilover

Rear Shocks/Struts Included: Yes

Rear Shock Type: Single adjustable monotube coilover

Front Sway Bar Included: Yes

Front Sway Bar Color: Black

Front Sway Bar Type: Modular

Front Sway Bar Diameter (in.): 1.500 in.

Front Sway Bar Diameter (mm): 38.10 mm

Rear Sway Bar Included: Yes

Rear Sway Bar Color: Black

Rear Sway Bar Type: Hollow

Rear Sway Bar Diameter (in.): 1.000 in.

Rear Sway Bar Diameter (mm): 25.40 mm

Tie Rod Sleeves Included: Yes

End Link Bushings Included: Yes

Rear Leaf Spring Bushings Included: No

Sway Bar Bushings Included: Yes

Upper Trailing Arms Included: Yes

Lower Trailing Arms Included: Yes

Trailing Arm Mount Braces Included: No

Panhard Bar Included: No

Torque Arm Included: No

Upper Control Arms Included: Yes

Lower Control Arms Included: Yes

Control Arm Style: Tubular

Control Arm Material: Steel

Control Arm Color: Black

Front Strut Tower Bar Included: No

K-Member Included: No

K-Member Support Brace Included: No

Rear Strut Tower Bar Included: No

Subframe Connectors Included: No

Chassis Stiffener Included: No

Calipers Included: No

Rotors Included: No

Brake Pads Included: No

Brake Lines Included: No

Wheel Studs Included: No

Center Link Included: No

Spindles Included: No

Inner Tie Rod Ends Included: No

Outer Tie Rod Ends Included: Yes

Bushing Material: Delrin®

Bushing Color: Black

Mounting Hardware Included: Yes

Quantity: Sold as a kit.

Notes: Springs rates are 700 Ibs. front and 150 Ibs. rear.

RideTech 1978-88 GM G-Body Coilover Suspension Systems

RideTech 1978-88 GM G-body coilover suspension systems include everything needed to provide modern drivability for your classic muscle.

The rear StrongArm R-joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing. RideTech 1978-88 GM G-body coilover suspension systems are as comfortable on the street as they are on the racetrack!

Features, items, and specs:

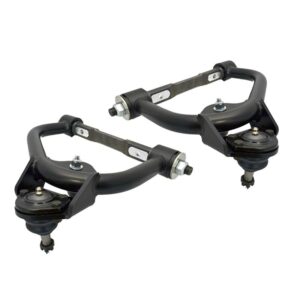

* Upper StrongArms feature tall ball joints for increased camber gain
* Upper ball joints have been moved back to allow for additional caster setting (improves high speed stability and steering feel; offset slugs available for additional caster)
* Injection-molded Delrin bushings with 13 percent PTFE used to reduce deflection and stiction

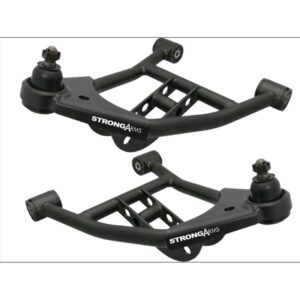

* Lower StrongArms feature a double-sheer lower mount for increased strength
* Dropped lower shock mount to increase suspension travel
* Lower ball joint moved forward to increase caster settings, while keeping the wheel centered in the wheel opening

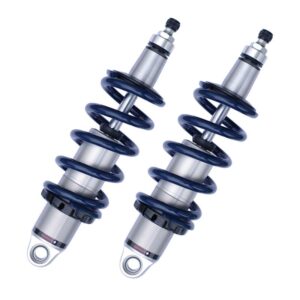

* HQ Series coilovers allow fine-tuning and deliver excellent ride quality and handling with a 1,000,0001 mile warranty (rebound knob located on top of front coilovers for underhood access)

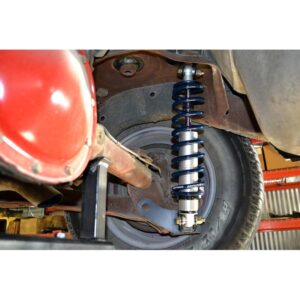

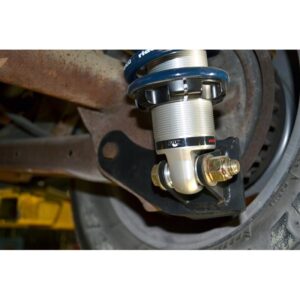

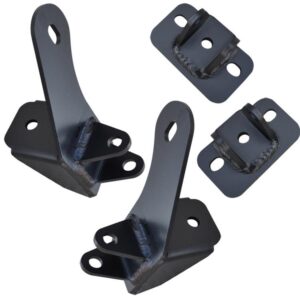

* Brackets included with rear coilovers for easy attachment to the frame and the 10/12 bolt rear-end
* Front MuscleBar helps reduce body roll and creates room for wider front tires (includes PosiLink end links that provide immediate engagement between chassis and control arms)

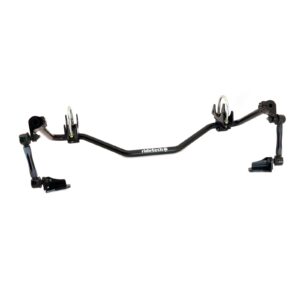

* Rear MuscleBar
* Rear StrongArms provide added strength to help get the power to the pavement
