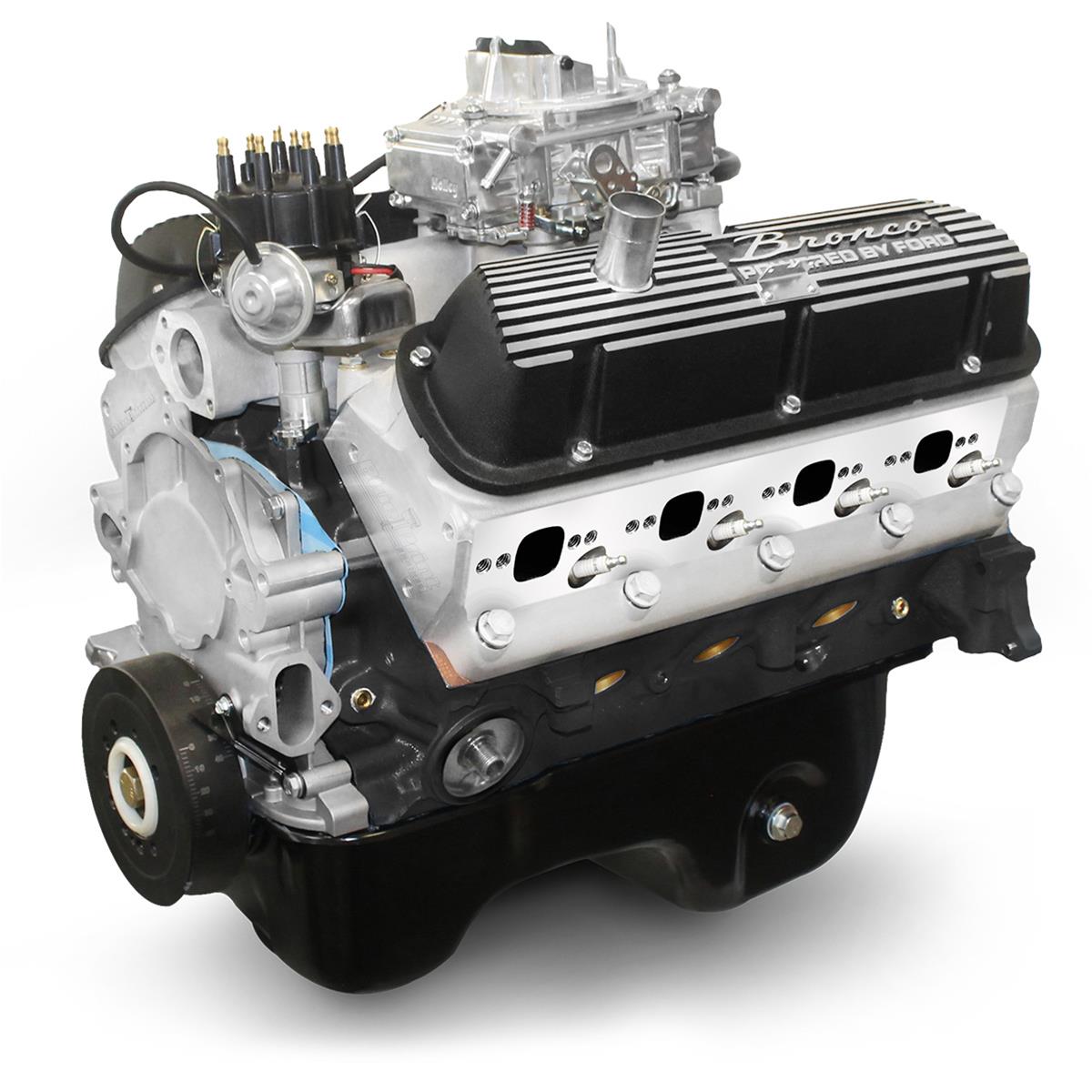

BluePrint Engines Ford 302 C.I.D. Bronco Edition 365 HP Long Block Crate Engines BP302MAXCTC

$5,987.00

302CI BRONCO EDITION, NEW BLOCK, ALUM HEAD, DRESSED LONG BLOCK CARBURETED

Overview

Brand: BluePrint Engines

Manufacturer’s Part Number: BP302MAXCTC

Part Type: Crate Engines

Product Line: BluePrint Engines Ford 302 C.I.D. Bronco Edition 365 HP Long Block Crate Engines

Summit Racing Part Number: MLL-BP302MAXCTC

UPC: 00887753743657

Crate Engine Family: Ford Windsor

Actual Engine Displacement: 5.0L/302

Crate Engine Cylinder Head Material: Aluminum

Engine Block Material: Cast iron

Advertised Compression Ratio: 9.5:1

Assembled: Yes

Engine Balance: External, 50 oz. imbalance

Cam Style: Hydraulic roller, OE roller

Rear Main Seal Style: 1-piece

Intake Manifold Included: Yes

Intake Manifold Style: Carbureted

Cylinder Heads Included: Yes

Carburetor Included: Yes

Throttle Body Included: No

Distributor Included: Yes

Oil Pan Included: Yes

Valve Covers Included: Yes

Timing Cover Included: Yes

Water Pump Included: No

Harmonic Balancer Included: Yes

Flexplate Included: No

Flywheel Included: No

Air Cleaner Included: No

Spark Plugs Included: Yes

Spark Plug Wires Included: No

Computer Included: No

Wiring Harness Included: No

Supercharger Included: No

Remanufactured: Yes

Quantity: Sold individually.

Notes: Includes Bronco script valve covers

BluePrint Engines Ford 302 C.I.D. Bronco Edition 365 HP Long Block Crate Engines

BluePrint Engines Ford 302 c.i.d. Bronco Edition 365 hp long block crate engines are available with a carbureted or fuel injected system. The base dressed engines are loaded with impressive features:

DESCRIPTION:
* Horsepower and torque: 365 hp / 365 lbs.-ft.
* Compression ratio: 9.5:1
* Aluminum heads
* Hydraulic roller cam
* Cast steel crank
* Hypereutectic pistons

BLOCK:
* NEW BluePrint cast iron block
* 4-bolt main
* 4.000 in. bore
* 1-piece rear main seal

ROTATING ASSEMBLY:
* Cast steel crankshaft
* 3.000 in. stroke
* OEM type 5.090 in. connecting rods
* Hypereutectic pistons
* 50 oz. external balance

CYLINDER HEADS:
* BluePrint aluminum cylinder heads – HP9009
* 60cc chamber
* 2.02 in. intake/1.60 in. exhaust valves
* 190cc intake/60cc exhaust runners

CAM SPECS:
* Cam type: Roller
* .533 Intake / .544 Exhaust
* 215 Intake / 220 Exhaust duration
* @ .050 – 114 degree lobe separation

IGNITION TIMING:
* 10-16 degrees initial, 32-34 total

ALSO INCLUDES:
* Bronco script valve covers
* Harmonic balancer
* Dual plane satin aluminum intake manifold
* 600 cfm carburetor (model BP302MAXCTC) …. Or …. EFI system (model BP302MAXCTF)
* Distributor
* Painted oil pan

NOTES:
* Painted Ford Blue
* Recommended break in oil for your BluePrint crate engine: BPP710
* Not for EGR
* Engine timing cover is designed for standard rotation water pump ONLY
* Valve cover breather not included. BluePrint Engines recommends PN B6AZ-6766-B
* On EFI model: Holley Sniper EFI is NOT compatible with AOD trans. It does NOT have AOD kickdown lever.
