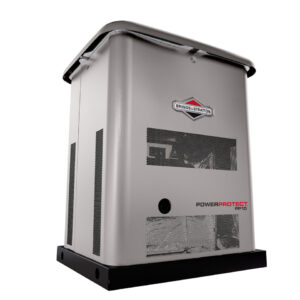

Briggs and Stratton 10kW Generator
The Briggs and Stratton 10kW Standby Generator fits into the landscape with a size and shape that compares to a central air conditioner—half the size of competing brands. Ideal for replacement or upgrade with an existing compatible automatic transfer switch. This 10 kW Briggs and Stratton standby generator is compatible with Amplify and Symphony II Power Management Systems (sold separately).
Rated for Installation 18-inches from the home with front-facing exhaust.
Briggs and Stratton PowerProtect Standby Generators carry the most comprehensive warranty in their class. Briggs & Stratton’s 6-Year Limited Warranty covers parts, labor, and travel for the entire term. Made in the USA with a commercial-grade engine. With a compatible automatic transfer switch, the Briggs and Stratton 10kW Generator with Power Management keeps all your essentials running throughout any power outage.
10 kW Standby Generator
The 10kW Standby Generator has a 570 cc V-Twin OHV Vanguard commercial grade engine equipped with Low Oil Shutdown to prevent engine damage. Other features include high temperature shutdown, LED display, and a built-in battery charger.
10 kW Briggs and Stratton Generator 40684 Ratings
| Use Rating | Standby Only—Requires Available Utility Grid |
| Voltage | 120/240 Volts Single Phase |
| Running Watts | 10kW LP Propane / 8kW Natural Gas |
| Running Amps | 41.7 Amps LP Propane / 33.3 Amps Natural Gas |
| Main Circuit Breaker | 50 Amps |
| Normal Operating Sound | 67 dBA |
| Frequency Regulation | ±2.5 Percent |
| Engine Speed | 3600 RPM |
Briggs & Stratton 10kW Standby Generator
A Briggs & Stratton 10kW Standby Generator restores power to your home during utility outages. Fully automatic, it works in any weather including hurricanes, day or night. Whether you’re at home, away on vacation, or sleeping in your bed, the 10kW generator senses a power outage. Within seconds, the generator starts and signals the automatic transfer switch. The ATS switches from utility to generator power. Power management ensures your home’s essential appliances and circuits have power when they need it.
Where temperatures fall below 30 degrees Fahrenheit, install a Briggs and Stratton Cold Weather Kit. The 6567 Generator Cold Weather Kit allows easier starts in temperatures below freezing with a battery warmer and oil heater. In below freezing temperatures, the battery warmer provides more power for starting the generator. Warm oil lubricates better which prolongs engine life and makes it easier to start.
Installation requires the use of a Carbon Monoxide Detector inside the home to guard against CO Poisoning.
This Briggs & Stratton 10kW Standby Generator is NOT rated for Prime Power Applications.
* Battery Not included—12 Volt, Group BCI 26 or 51, 540 Cold Cranking Amps
* Enclosure Warranty
- 1-Year Parts/Labor/Travel covers surface rust and corrosion.
- 2-Year Parts/Labor/Travel covers enclosure rust through.
Product Specifications
Model
Model Number; 40375
Manufacturer; Briggs and Stratton
Made In USA; Yes
Rated Watts; 8kW Natural Gas / 10kW LP Propane
Rated Amps; 33.3 Amps Natural Gas / 41.7 Amps LP Propane
Voltage; 120/240V Single Phase
A/C Ton Rating; 3 Ton
Enclosure; Galvanneal Steel
UL Listed; UL-2200
Decibel Rating; 67 dBA
Type; Standby Generator
Transfer Switch Model; Sold Separately
Features
Starting System; Automatic Start
Low Oil Alert; Yes
Mainline Breaker; 50 Amps
Battery Requirement; 12 Volt, Group BCI 26 or 51, 540 CCA
Mounting Pad; Composite Base Attached
Weight; 272 lbs
Dimensions; 28L x 24.5W x 34.8H
Warranty Information
Consumer Warranty; Briggs and Stratton 6 Year Warranty Covers Parts, Labor, Travel
Engine
Engine Brand; Briggs & Stratton Vanguard Engine OHV
Engine Size; 570cc
Engine RPM; 3600
Cast Iron Sleeve; Yes
Cooling System; Air Cooled
Alternator
Alternator Type; Self Excited, Rotating Field
Frequency; 60 Hz
Auto Voltage Regulation; Yes
Fuel
Fuel Type; Natural Gas (NG) / Propane (LP)
Fuel Gauge; No
NG Power Capacity; 8kW
LP Power Capacity; 10kW
NG Consumption @ Full Load; 169 Cubic Feet per Hour
NG Consumption @ Half Load; 111 Cubic Feet per Hour
LP Consumption @ Full Load; 1.9 Gallons Per Hour
LP Consumption @ Half Load; 1.2 Gallons Per Hour
