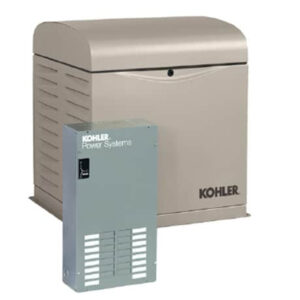

Kohler 12kW Home Standby Generator with 100 Amp 12- Circuit Load Center ATS | 12RESVL-100LC12
$2,189.00
- High Quality Power – Kohler home generators provide advanced voltage and frequency regulation along with ultra-low levels of harmonic distortion for excellent generator power quality to protect your valuable electronics
- Extraordinary Reliability and performance backed with a 5-Year or 2000 hour limited warranty
- Steel Base and Hinged, Locking Roof
- Fuel and Electrical connections through the enclosure wall eliminate the need for stub-ups through the bottom.
- OnCue Plus Generator Management System for remote monitoring is included.
- RXT Model 100 Amp Automatic Transfer Switch w/NEMA 1 enclosure with 12-space load center for indoor installation is included.
Did you like this product? Add to favorites now and follow the product.
+1 (917) 740-4358Start Live Chat
Description
Kohler 12RESVL-100LC12 12kW Air Cooled Standby Generator Package with 100-Amp 12-Space Load Center Automatic Transfer Switch, Nema 1 (Indoor Use Only) and OnCue Plus Generator Management System.
Kohler generators for backup power provide reliability and performance. When you lose power during an outage or storm, a hard-working 12kW Kohler generator keeps your appliances working, the heat or AC running and your security system on. OnCue Plus Generator Management System is standard with every RESV or RESVL generator.
High Quality Power – Kohler generators provide advanced voltage and frequency regulation along with ultra-low levels of harmonic distortion for excellent generator power quality to protect your valuable electronics.
Powerful – The Kohler 12kw generator can easily start and run a 5 ton air conditioner with up to 5kW preload.*
Perfect for Tight Lot Lines – Can be placed as close as 18 inches from your home or small business, providing instalaltion felxibility even on smaller lots. (Please refer to product specifications for any restrictions.)
Reliable – Kohler is known for extraordinary reliability and performance and backs that up with a 5-year or 2000 hour limited warranty.
Enclosure – Bold new Kohler design in steel, dipped in e-coat for extra corrosion protection and painted with a durable powder coat finish.
Remote Monitoring – Every 12RESVL comes standard with the OnCue Plus remote monitoring system for peace of mind at home no matter where you are in the world.
The Power You Need
– PowerBoost Technology provides power to start large loads such as central air conditioners without dropping power to other appliances.
– Extraordinary peak motor-starting capcity: 12RESVL at 16.8kVA at 240V
– Premium power quality delivers exceptional digital voltage and frequency regulation along with low levels of harmonic distortion to protect sophisticated electronics.
The Conveniences You Expect
– Comes with RXT 100 Amp indoor rated automatic transfer switch with 12-space load center.
– RDC2 controller designed for today’s sophisticated electronics manages both the generator set and Model RXT transfer switch functions.
– Accepts natural gas fuel pressure as low as 3.5 inches W.C.
– Quiet, neighborhood-friendly operation with sound levels similar to a typical central air conditioner.
– Meets 181 mph wind rating.
– Runs on either natural gas or liquid propane (LPG) with simple switching between natural gas and LPG in the field.
*Based on generator and load size. Check the appliance manufacture’s specifications for actual power requirements. Consult a Kohler Power Systems professional to calculate your exact residential power system requirements.
Requires a 12-Volt Group 51 Battery Rated for 500 Cold Cranking Amps. (Purchase Locally)
Product Specifications
Model
Model Number; 12RESVL-100LC12
Manufacturer; Kohler Generators
Made In USA; Yes
Rated Watts; 12kW LP/11kW NG
Rated Amps; 50 LP/45.8 NG
Voltage; 120/240V Single Phase
A/C Ton Rating; 5 Ton
Enclosure; Steel
UL Listed; Yes
Decibel Rating; 71 dbA @ 7 meters Full Load
Type; Standby Generator
Transfer Switch Model; RXT
Features
Starting System; Automatic Start
Low Oil Alert; Yes
Hour Meter; Yes
Battery Requirement; Requires 12V Group 51 500 CCA
Mounting Pad; Steel Base Attached
Weight; 350 lbs
Dimensions; 28L x 30W x 32.4H
Warranty Information
Consumer Warranty; 5 Year/2000 Hr Limited
Engine
Engine Brand; Kohler KT725
Engine Size; 725 cc
Engine RPM; 3600
Cast Iron Sleeve; Yes
Cooling System; Air Cooled
Alternator
Alternator Type; Brushed
Frequency; 60 Hz
Auto Voltage Regulation; Yes
Fuel
Fuel Type; Natural Gas (NG) / Propane (LP)
Fuel Gauge; No
NG Power Capacity; 11kW
LP Power Capacity; 12kW
NG Consumption @ Full Load; 216 cu.ft/hr
NG Consumption @ Half Load; 128 cu.ft/hr
LP Consumption @ Full Load; 103 cu.ft/hr
LP Consumption @ Half Load; 57 cu.ft/hr
Transfer Switches
Transfer Switch Amps; 100 Amps – Nema 1 Indoor Rated Only
Transfer Switch Circuits; 12 Space Load Center
Ats Poles; 2 Pole
Transfer Switch Weight; 17 lbs
