Overview

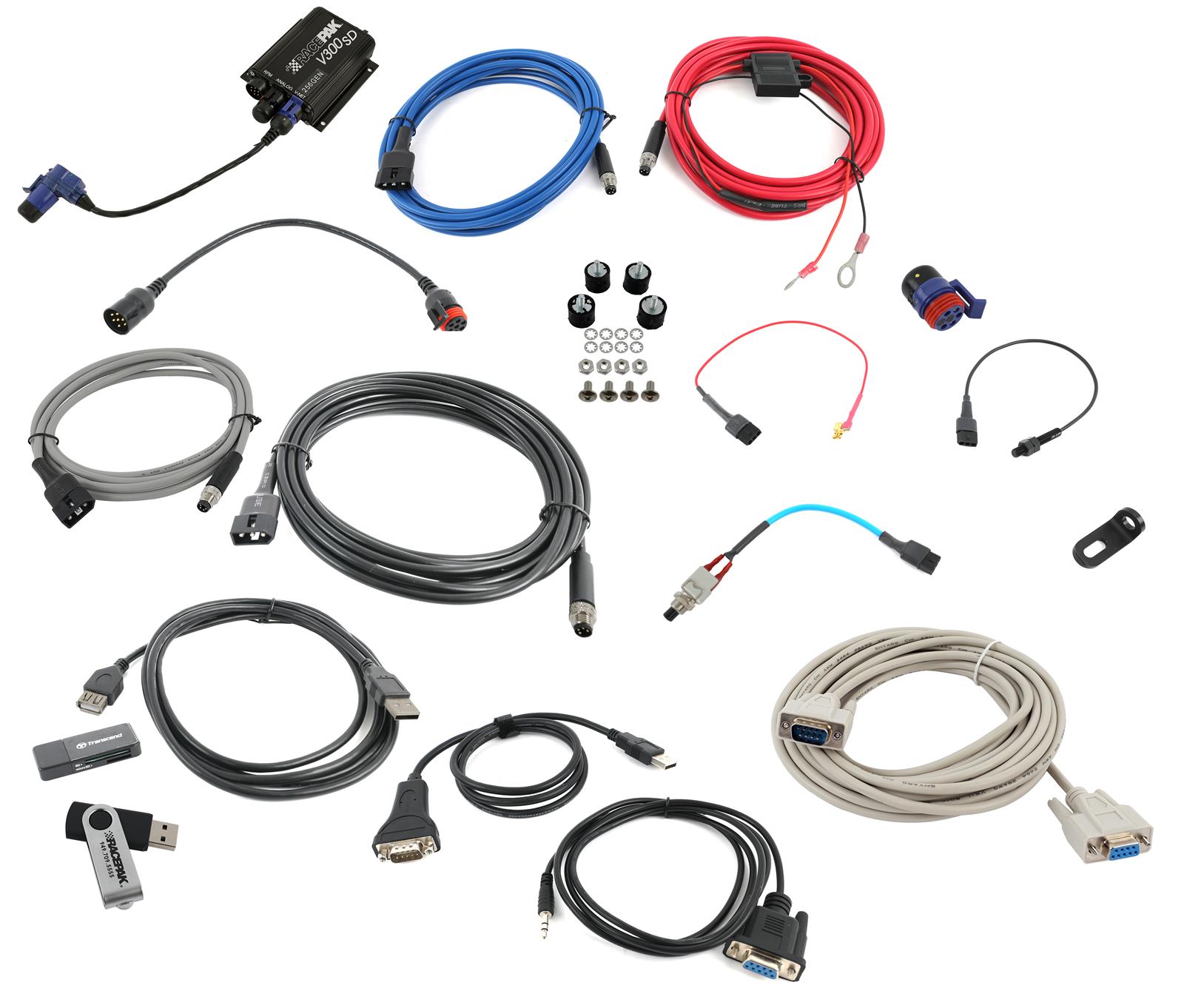

Racepak V300SD Data Logger Door Kits

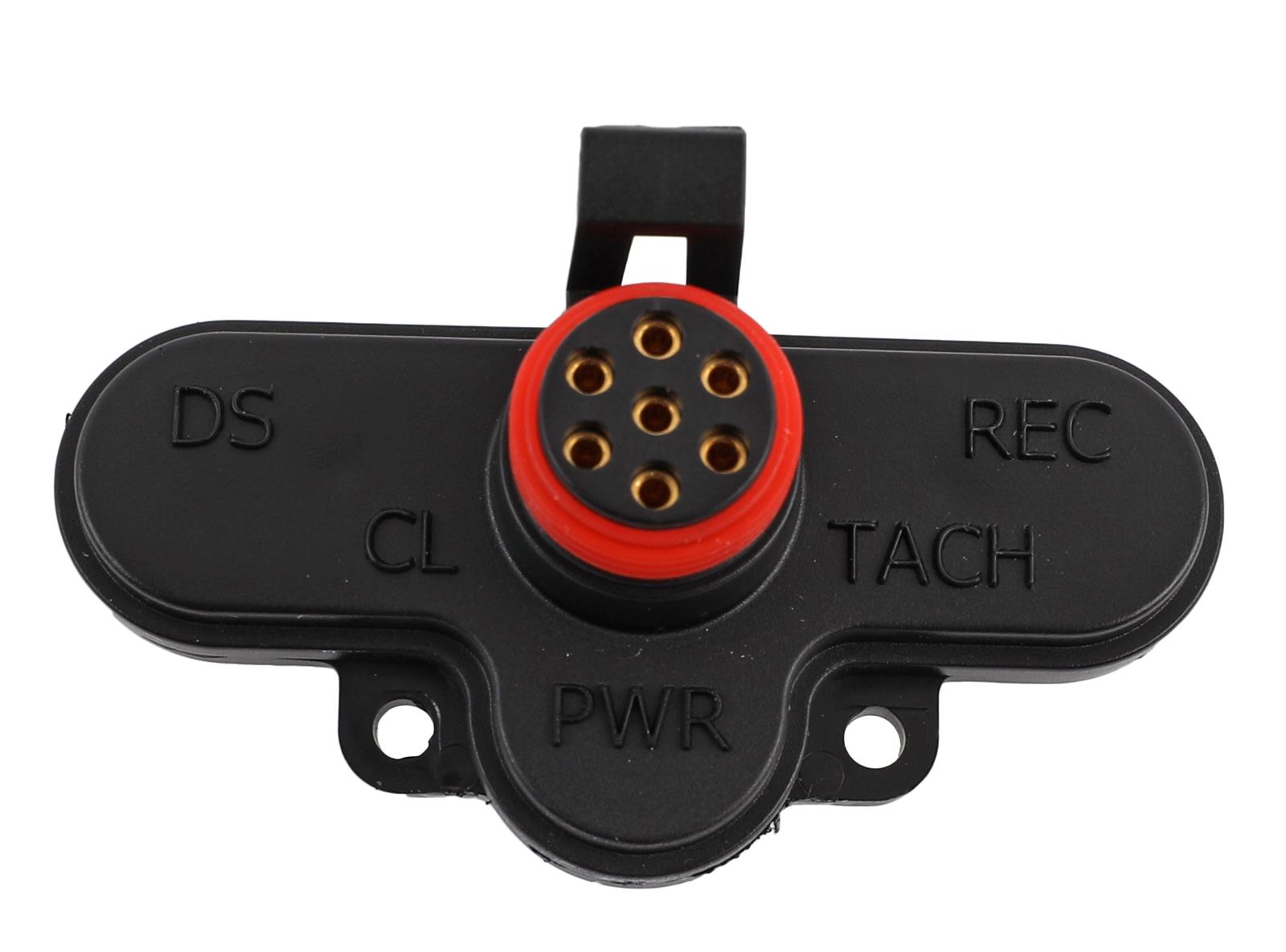

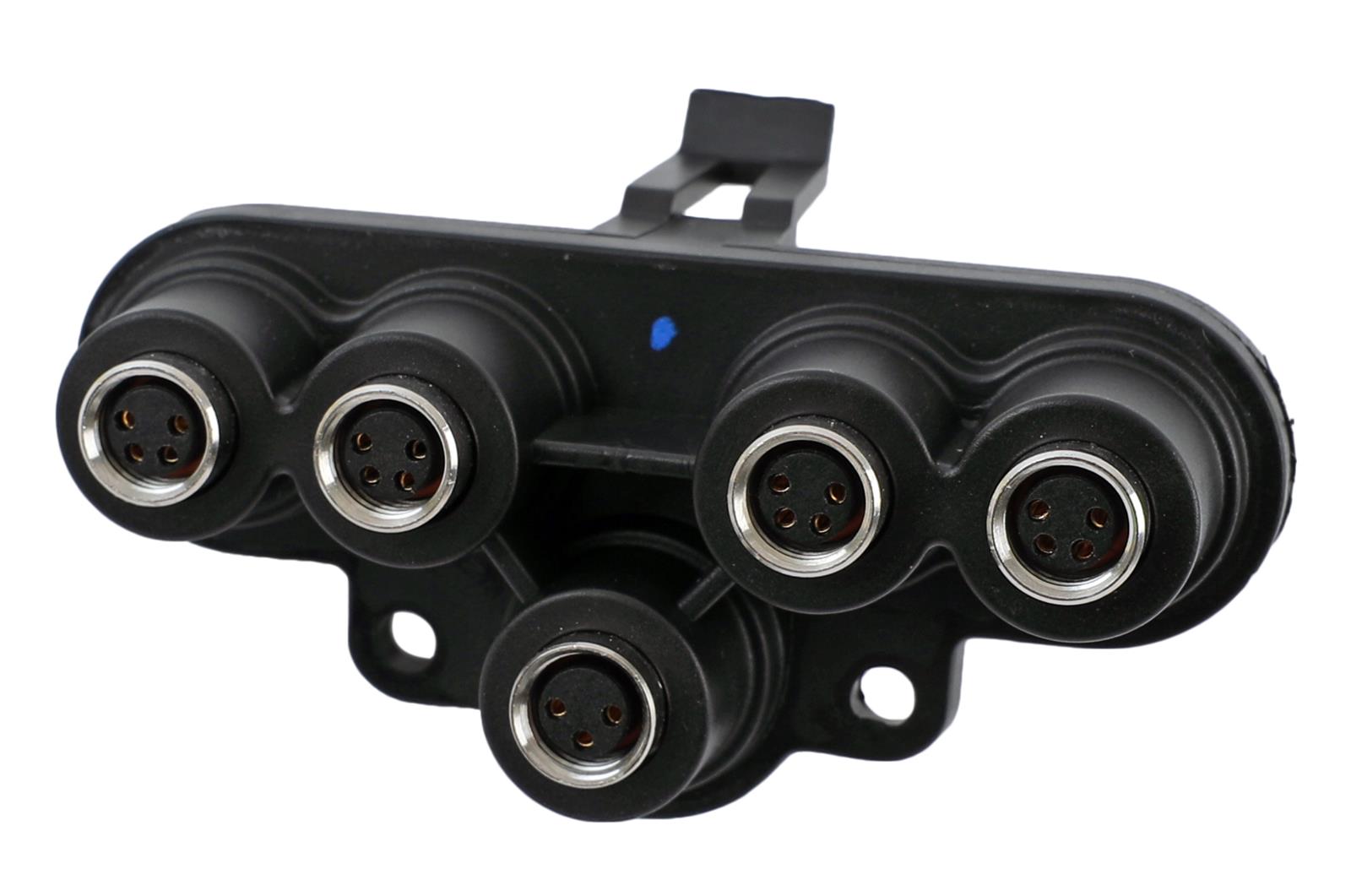

The new Racepak V300SD Easy Access Data Loggers include all the features and benefits of their successors, but now also include built-in pre-configured data analysis channels, enabling you to make quick decisions based on real data between rounds at the track. Equipped with a door car harness, these units are commonly used for Pro Stock, Pro Modified, Sportsman drag classes, and Land Speed. They come with DataLink software. Easy Access loggers no longer require the use of a security key, allowing you to look at your data with any laptop that has the latest version of Datalink V5 installed.
* Out-of-the-Box, this system will data log:
– Engine RPM
– Drive Shaft RPM (Requires driveshaft collar, sold separately)
– Accelerometer G-Meter
– Lateral G-Meter
– Battery Voltage
* List of pre-configured data analysis math channels included in the DataLink V5 software:
– Engine vs. Driveshaft Ratio
– Clutch percentage slip
– Clutch Slip Ratio
– Trans Ratio
– RR, LR, RF, LF Shock Velocity
– Average Air/Fuel Ratio
– Average Exhaust Gas Temperatures
– CC’s Per Turn (for Fuel Flow)
– Track Time
– G-Meter MPH, G-Meter Distance (Feet)
– 60 ft., 330 ft., 660 ft., 1000 ft., 1320 ft. Clock Markers
Features:
* With sampling rates of up to 1,000 frames per second, the V300SD series of data recorders allow you to monitor up to 83 channels of sensor information
* Unlocked math channels for the following calculations: Clutch Percentage Slip, Trans Ratio, Shock Velocity, Average AFR (Air/Fuel Ratio), Average EGT (Exhaust Gas Temperature), G-Meter MPH, and many more
* The included SD memory card allows you to transfer your vital sensor information to your laptop quickly, getting you back in the lanes without fumbling with cables
* The 83 total channels break down as follows: 72 V-Net; 4 Hard-wired Analog; 4 Hard-wired Digital; and 3 Internal Sensors (Battery Voltage, Accel/Decel G-Meter, and Lateral G-Meter)
