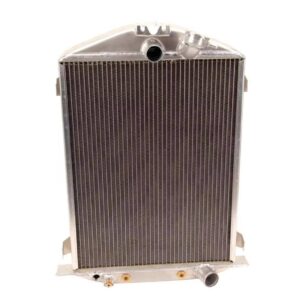

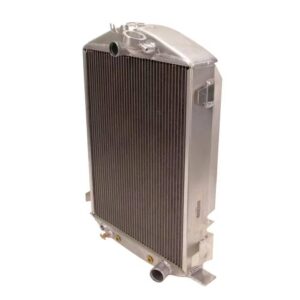

Griffin 7-70088 Deluxe Alum Radiator for 1932 Ford Chassis w/ SB Chevy
$1,010.00
In Stock
Did you like this product? Add to favorites now and follow the product.
Add to Wishlist
Add to Wishlist
Have a Question? Ask a Specialist
+1 (917) 740-4358Start Live Chat
Description
Product Summary
Single Pass Radiator Style, Aluminum, 2 Row Quantity
- Hood support brackets are included
- Features a built-in HD automatic transmission oil cooler
- Has brackets on side for grill shell and on top for support rods
- It provides 40% greater tube-to-fin contact over a copper/brass radiator
- This radiator is specially designed for the 1932 Ford Chassis w/ SB Chevy
Details
Griffin Aluminum radiators give superior cooling over a brass/copper radiator. They feature 2 rows of 1.25″ tubes furnace brazed into the core which provides 40% greater tube-to-fin contact over a copper/brass radiator. These radiators are designed for use on 1932 Ford Chassis with a small block Chevy engine.
- Built-in HD automatic transmission oil cooler
- Hood support brackets are included
- Brackets on side for gille shell
- Brackets on top for support rods
- No “dummy” filler neck
Charts
KEY SPECS |
|
---|---|
MFG. Part # | 7-70088 |
Brand | Griffin Radiators |
Radiator Style | Single Pass |
Radiator Flow Direction | Downflow |
Material Type | Aluminum |
Inlet Location | Center |
Outlet Location | Lower passenger side |
Row Quantity | 2 |
Tube Size | 1.25″ |
Overall Width Range | 17.00″ to 17.99″ |
Overall Width | 17.38″ |
Overall Height Range | 27.00″ to 27.99″ |
Overall Height | 27″ |
Overall Thickness | 3″ |
Core Width Range | 22.00″ to 22.99″ |
Core Width | 22″ |
Core Height Range | 17.00″ to 17.99″ |
Core Height | 17.375″ |
Core Thickness | 2.69″ |
Finish | Natural |
Cooling Fan | Not Included |
Transmission Cooler | Yes |
Shroud Included | No |
Radiator Cap Included | No |
GENERAL |
|
Inlet Size | 1.50 |
Outlet Size | 1.75 |
Color | Silver |
Fan Included | No |
GTIN Code | 766897316319 |
Sold in Quantity | Each |
