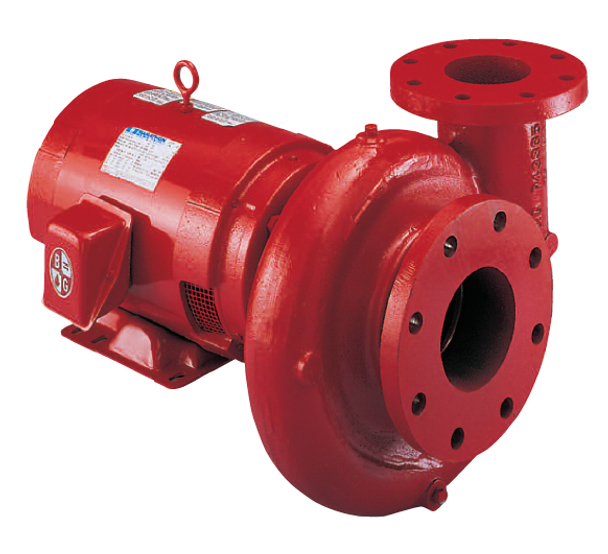

Bell & Gossett Series 1531 Pump Model 1-1/4AC Pump 1-1/2 HP 1750 RPM Motor with 1-1/4″ shaft size, 1-1/2″ NPT end suction, and a 1-1/4″ NPT top discharge.
Bell & Gossett Series 1531 end suction, close-coupled, foot-mounted pumps available in 1-1/4” through 6” sizes. Motor size 3/4 to 50 HP at 1750 RPM, 2 to 60 HP at 3500 RPM. Available in bronze-fitted and all-iron construction with flows to 2300 GPM, heads to 400 feet. Close-coupled, space-saving economy plus rugged construction make the Series 1531 an ideal selection for a variety of horizontal and vertical mount applications. Available with the B&G standard self-flushing Carbon/Ceramic mechanical seal in 175# working pressure design.
APPLICATIONS:
Hydronic heating and cooling systems, general service, cooling towers and industrial uses.
Features and Benefits
- Back pullout design allows ease of maintenance.
- Self-flushing mechanical seals.
- Aluminum bronze shaft sleeve.
- Enclosed, balanced impeller for quiet, vibration free performance.
- Heavy duty cast iron volute construction for 175 PSI working pressure.
- Jacking bolts provide ease of volute disassembly.
- Gauge tappings.
- Hydrostatic testing of each pump is standard.
|
Manufacturer:
|
Bell & Gossett
|
|
Series:
|
1531
|
|
Model:
|
1-1/4AC
|
|
Connection Type:
|
Threaded
|
|
Connection Size:
|
1-1/4″ x 1-1/2″
|
|
Shaft Size:
|
1-1/4″
|
|
Impeller Size:
|
7″
|
|
Working Pressure:
|
175 PSI
|
|
Construction:
|
Cast Iron
|
|
Pump Type:
|
Centrifugal
|
|
Mounting Type:
|
Base Mounted
|
|
Frame Size:
|
145JM
|
|
Horsepower:
|
1-1/2 HP
|
|
Motor RPM:
|
1750 RPM
|
|
Motor Phase:
|
Three Phase
|
|
Hertz:
|
60
|
|
Voltage:
|
208-230/460
|
|
Max Temp:
|
225*F
|
