DOMESTIC DOMESTIC PUMP 616PVF-B Domestic B-Style Pump 1/2HP

Description

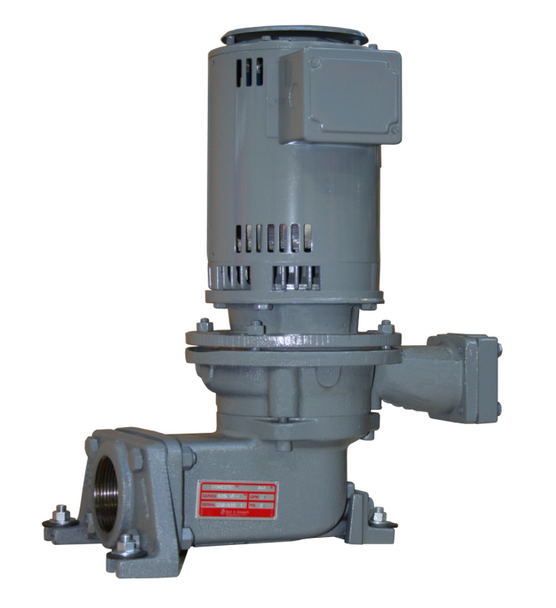

616PVF-B Hoffman Domestic B-Style Pump 1/2HP 3500 RPM ODP 115/1/60 Volt. *Please note image is generic. These pumps are the heart of Domestic Pump condensate-handling equipment. Centriflo centrifugal pumps are basic components of much of our line of condensate-handling equipment. Designed for the rigorous demands of this service, Centriflo pumps require a lower NPSH than conventional pumps. Vertical mounting of the pump saves floor space and gets the motor up above dirt and water. The style PF flange-mounted pumps can be simply bolted to vertical flat surfaces, such as our condensate receivers, eliminating suction piping completely. PVF vertical foot mounted are provided with footed NPT connect suction flanges and NPT discharge connections for ease of use in other applications.

Features and Benefits:

• Cast iron, bronze fitted with stainless steel shaft
• Easily renewable bronze case wearing ring
• Carbon/ceramic mechanical seals designed for 250°F (121°C)
• Available in 3500 RPM (Series C35) and 1750 RPM (Series C17)
• Capacities to 600 GPM (37.8 l/s)
• Pressures to 100 psi (690 kPa)
