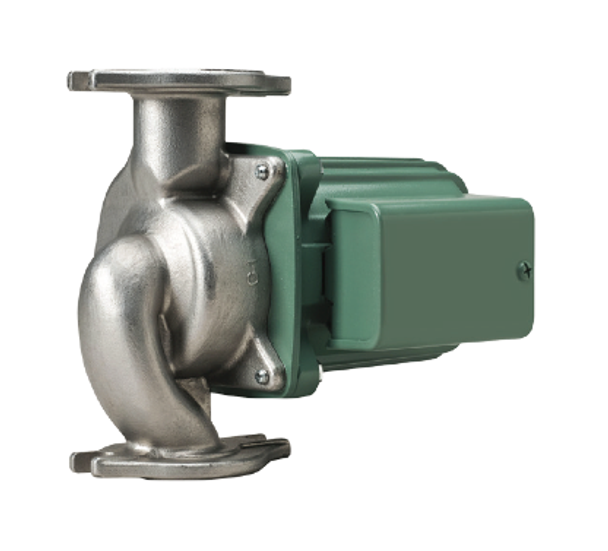

0013-SF3-IFC Taco Stainless Steel Pump Flanged Rotated. The 0013-IFC includes an Integral Flow Check, saving installation costs while improving system performance. The removable, spring-loaded IFC replaces a separate in-line flow check and prevents gravity flow when the circulator is not operating. Available in Cast Iron or Stainless Steel construction. The 0013-IFC with an Integral Flow Check is designed to reduce installation costs when zoning with 00 circulators on high head / high flow hydronic or radiant heat-ing, hydro-air fan coils or heat exchangers and geothermal systems. By locating the removable, spring-loaded IFC inside the pump casing, a separate in-line flow check is eliminated, reducing installation costs. The reduced pressure drop of the IFC, increases the 0013 flow performance over in-line check valves. Both the IFC and cartridge are easily accessed for service instead of replacing the entire unit.
The Taco 00 series pump is designed for circulating hot or chilled fresh water in open or closed loop, lower flow applications. Flow characteristics are ideal for Domestic Hot Water Recirculation, Heat Recovery units, Water Source Heat Pumps, and Potable Water systems. The unique, replace- able cartridge contains all of the moving parts and allows for easy service instead of replacing the entire circulator. The compact, low power consumption design is ideal for high efficiency jobs.
|
Brand:
|
Taco
|
|
Model:
|
0013-SF3-IFC
|
|
Material:
|
Stainless Steel
|
|
Max Pressure (PSI):
|
150 psi
|
|
Horse Power:
|
1/6 hp
|
|
Connection Size:
|
3/4″, 1″, 1-1/4″, 1-1/2″
|
|
Flow Range (GPM):
|
0-33
|
|
Max Flow:
|
33
|
|
Head Range (FT):
|
0-32
|
|
Max Head (FT):
|
32
|
|
Phase:
|
Single
|
|
RPM:
|
3250
|
|
Connection:
|
Flanged Rotated
|
|
Hertz:
|
60
|
|
Temperature Range:
|
40* – 230*F
|
|
Warranty:
|
3-Year Manufacturer Warranty
|
