Product Summary
- This part number does not include a rear axle housing or engine/transmission mounts (as pictured). If you wish to add these items to your chassis, simply purchase these items along with your frame kit.
- Comes with a 1-1/2 X 3″ rectangular steel tube frame with 102″ wheelbase and the rear crossmember is c-notched for added rear axle clearance
- Features spring-behind front suspension with 4″ drop tube axle and hairpin radius rods
- Comes with your choice of ’37-’48 Ford or ’49-’54 Chevy-style spindles with king pins fitted
- Available with plain or chrome suspension components to better suit your style
Details

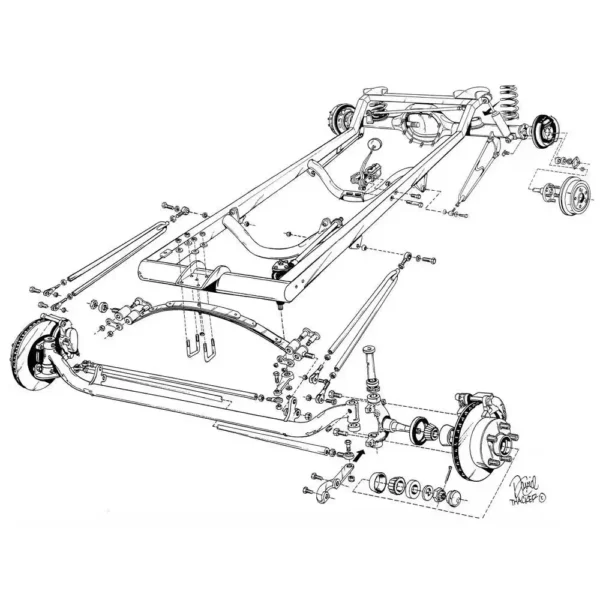

It doesn’t get any simpler than this! Our most basic T-bucket frame is engineered for a simple and economical coil spring rear suspension with traditional-style radius rods. The front suspension is our time-tested transverse-leaf, spring-behind-axle setup with hairpin-style radius rods. Designed for the do-it-yourselfer, this frame has no front shock mounts – you can fabricate your own or choose from those offered by Speedway!

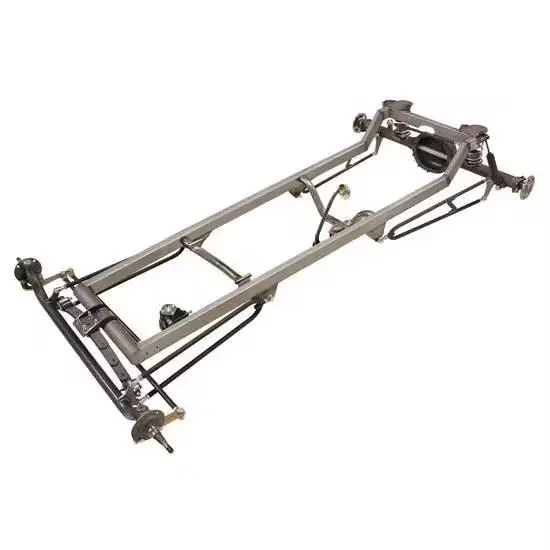

Shown with optional rearend and engine mounts installed. This part number does not include a rear axle housing or engine/transmission mounts (as pictured). If you wish to add these items to your chassis, simply purchase these items along with your frame kit.
Rear Axle Housing Option:
Part# 715700 – Speedway Ford 9 Inch Rear Axle Housing Kit for T-Bucket Chassis, 31-Spline, 56 Inch Width.
- Includes an all-new housing, tubes and new-style big Ford ends, lifetime warranty, 31-spline axles with dual bolt pattern (5 on 4.5″ and 5 on 4.75″) and new axle bearings.
- Necessary suspension brackets will be welded to the housing, according to which chassis you order.
- Option is only available with the purchase of a T-Bucket frame.
- Center section NOT included.
Engine / Transmission Crossmember options available:
Part# 715500 – Small Block Chevy and TH350 Auto Trans Mount Option For T Frame Kit
- This T frame kit option includes tubular engine and transmission crossmembers welded into a ’23 or ’27 T-Bucket frame. Will accept S/B Chevy engine and TH-350 or TH-400 transmissions.
Part# 715600 – Small Block Ford and C4 Auto Trans Mount Option for T Frame Kit
- This T-frame option will include tubular engine and transmission crossmembers welded into your ’23 or ’27 T-Bucket chassis. Will accept S/B Ford engine and C-4 transmission only.
- Due to clearance issue with the Vega steering box, you will need to either remote mount the oil filter or make use of the 90 degree oil filter adaptor # 910-6880.
Note: When ordering either of these options with a T-Bucket frame kit, the frame will be shipped with these crossmembers welded to it. As such, this engine/transmission crossmember option must be ordered with a T frame kit. This is not available separate of a T frame kit.
All of our T kits are also available with chrome suspension. This option includes chrome plated: front and rear hairpins, rear coilovers, front axle, front leaf spring, front shocks, steering arms, tie rod, drag link, and related hardware.
This item requires a 3-4 week build time.
Features:
- 1-1/2 X 3″ Rectangular steel tube frame with 102″ wheelbase
- Rear crossmember is c-notched for added rear axle clearance
- 3″ O.D. round tube front crossmember
- Spring-behind front suspension with 4″ drop tube axle and hairpin radius rods
- Choice of ’37-’48 Ford or ’49-’54 Chevy-style spindles with king pins fitted
- Coil spring rear suspension with panhard bar
- Cross Steering with Vega steering box
- Frame assembly includes: front spring, axle, spindles, rear coil springs, rear shocks, and panhard bar; front and rear radius rods; Vega steering box with pitman arm; master cylinder, bracket and pedal
- Available with plain or chrome suspension components
