RideTech Corvette Coilover Suspension Systems 11560201

In Stock

$2,345.00

Suspension Package, Handling Suspension System, HQ Coliover Springs, Sway Bars, Chevy, Kit

In Stock

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist

Have a Question? Ask a Specialist

+1 (917) 740-4358Start Live Chat

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Description

Overview

Brand: RideTech

Manufacturer’s Part Number: 11560201

Part Type: Suspension Handling Packages

Product Line: RideTech Corvette Coilover Suspension Systems

Summit Racing Part Number: ART-11560201

UPC: 840123507273

Front Coil Springs Included: Yes

Rear Coil Springs Included: Yes

Rear Leaf Springs Included: No

Front Shocks/Struts Included: Yes

Front Shock Type: Single adjustable monotube coilover

Rear Shocks/Struts Included: Yes

Rear Shock Type: Single adjustable monotube coilover

Front Sway Bar Included: Yes

Front Sway Bar Color: Black

Front Sway Bar Type: Hollow

Front Sway Bar Diameter (in.): 1.250 in.

Front Sway Bar Diameter (mm): 31.75 mm

Rear Sway Bar Included: Yes

Rear Sway Bar Color: Black

Rear Sway Bar Type: Hollow

Rear Sway Bar Diameter (in.): 1.000 in.

Rear Sway Bar Diameter (mm): 25.40 mm

Tie Rod Sleeves Included: No

End Link Bushings Included: Yes

Rear Leaf Spring Bushings Included: No

Sway Bar Bushings Included: Yes

Upper Trailing Arms Included: No

Lower Trailing Arms Included: No

Trailing Arm Mount Braces Included: No

Panhard Bar Included: No

Torque Arm Included: No

Upper Control Arms Included: No

Lower Control Arms Included: No

Front Strut Tower Bar Included: No

K-Member Included: No

K-Member Support Brace Included: No

Rear Strut Tower Bar Included: No

Subframe Connectors Included: No

Chassis Stiffener Included: No

Calipers Included: No

Rotors Included: No

Brake Pads Included: No

Brake Lines Included: No

Wheel Studs Included: No

Center Link Included: No

Spindles Included: No

Inner Tie Rod Ends Included: No

Outer Tie Rod Ends Included: No

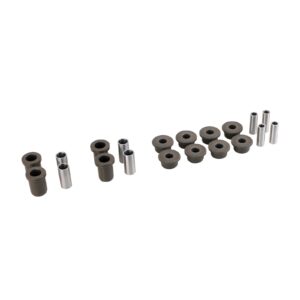

Bushing Material: Delrin®

Bushing Color: Black

Mounting Hardware Included: Yes

Quantity: Sold as a kit.

RideTech Corvette Coilover Suspension Systems

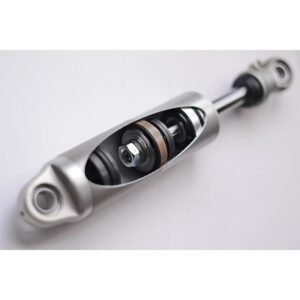

RideTech Corvette coilover suspension systems include MuscleBar sway bars, Delrin control arm bushings, and powdercoated conversion brackets. The 100 percent bolt-on kit will significantly improve your Corvette’s handling, while giving you control over ride-height adjustment. RideTech engineers custom-tailored the system’s HQ Series shock absorber valving for modern, world-class ride quality. Rebound adjustment knobs help you fine-tune ride and handling to your driving style and tire selection. For the ultimate track experience, upgrade to the TQ Series coilovers with a remote reservoir for high and low speed compression adjustments.

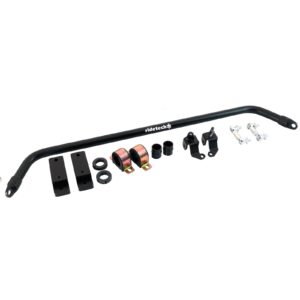

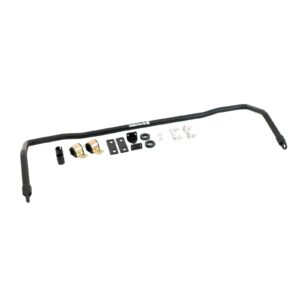

RideTech’s CNC-bent MuscleBar sway bars increase bar rate over stock, allowing for more comfortable, compliant coil spring rates. MuscleBars feature investment cast bar ends that perfectly engage end-link bushings as your Corvette’s cornering loads change. Delrin-lined mounting bushings never squeak or need lubricating. The same is true for the kit’s Delrin A-arm bushings. Overall, the C4 Corvette coilover conversion systems offer tremendous bang for the buck with real-world improvements. They’re a game changer for the C4 Corvette platform. (Included shock absorbers carry a 1,000,001 mile warranty.)
