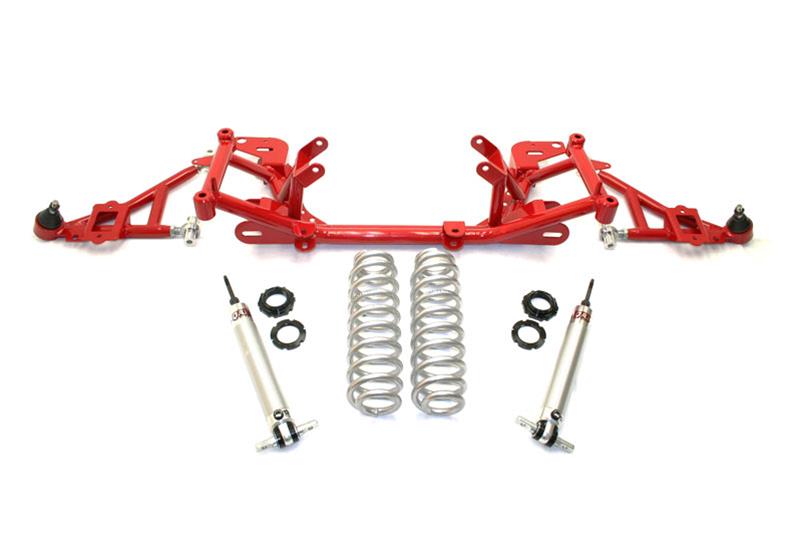

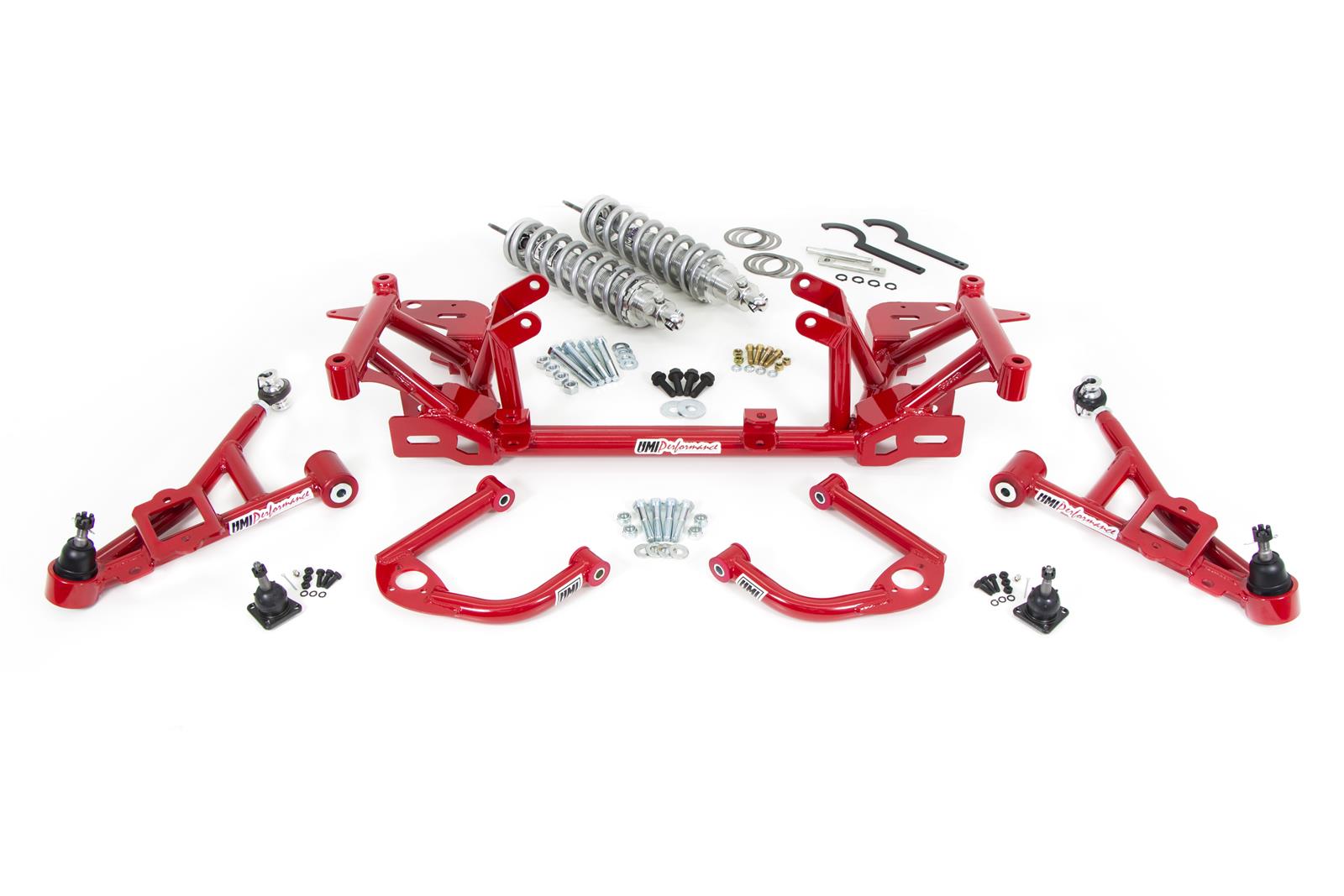

UMI Performance Stage 4 Front Suspension Packages FBS004-R

$1,279.00

Suspension Package, Front, Crossmember, Control Arms, Coilover Shocks and Springs, Chevy, Pontiac, Kit

Overview

Brand: UMI Performance

Manufacturer’s Part Number: FBS004-R

Part Type: Front Suspension Packages

Product Line: UMI Performance Stage 4 Front Suspension Packages

Summit Racing Part Number: UPI-FBS004-R

Crossmember Included: Yes

Crossmember Material: Steel

Crossmember Color: Red powdercoated

Welding Required: No

Front Spindles Included: No

Upper Control Arms Included: Yes

Lower Control Arms Included: Yes

Control Arm Style: Tubular

Control Arm Material: Steel

Control Arm Color: Red

Upper Ball Joints Included: Yes

Lower Ball Joints Included: Yes

Rack and Pinion Included: No

Shocks Included: Yes

Shock Type: Coilover

Coilover Springs Included: Yes

Coilover Spring Rate (lbs/in): 550 lbs./in.

Spring Finish: Gray/Silver

Disc Brake Kit Included: No

Front Rotor Included: No

Front Caliper Included: No

Brake Pads Included: No

Sway Bar Included: No

Center Link Included: No

King Pins Included: No

King Pin Bearings Included: No

Pitman Arm Included: No

Idler Arm Included: No

Tie Rod Sleeves Included: No

Inner Tie Rod Ends Included: No

Outer Tie Rod Ends Included: No

Quantity: Sold as a kit.

Notes: Includes Grade 10.9 hardware, spring thrust bearings and spanner wrench.

UMI Performance Stage 4 Front Suspension Packages

UMI Performance Stage 4 front suspension packages are direct bolt-in replacements–no welding is needed. These kits will give your vehicle a sturdy understructure, while providing weight reduction, performance, and comfort. The dual tube K-member and tubular upper and lower race A-arms and rod ends can take any abuse you can dish out. Poly bushings on the straight strut portion absorb road noise, while the non-adjustable uppers guide the suspension on greasable poly bushings.

Additional features:

* Premium upper and lower ball joints installed
* Double adjustable Viking shocks feature 361 possible valving combinations
* Height adjustment from 0 to 2 in. lowering
* 550 lbs./in. front springs
* 33 lbs. of front-end weight savings
* Chromoly A-arms save an additional 1.5 lbs.
* Work with factory steering racks
* Grade 10.9 hardware with Nyloc nuts
* Thrust bearing and spanner wrench
