Description

Power Rack Type, 4 Turns Lock to Lock, 30 Spline Count

Deigned to fit the majority of Rayburn, Masterbuilt, Barry Wright, Rocket (blue), Victory Circle and Warrior chassis
Threaded ends have a 5/8″-18 pitch
Measures a total of 18-1/4″ in length
Spline end has a 3/4″-30 tread pitch
Rack is specifically designed to be a race item and is not intended for street use

Details

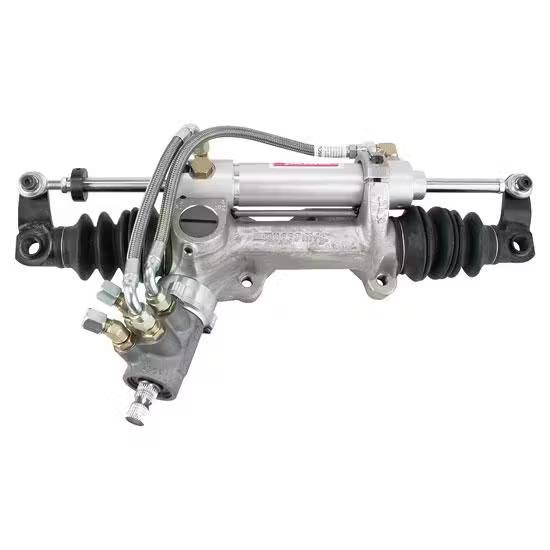

These power rack & pinions fit the majority of Rayburn, Mastersbilt, Barry Wright, Rocket (blue), Victory Circle and Warrior chassis and are 18-1/4″. Rack speed is measured in inches per turn. If you turn the pinion (1) time, the rack shaft will move between 1-3/4″ (slow) and 3-1/4″ (fast). That number is stamped on the front of the housing next to the greases fitting.

Item Details

4″ with .220 servo Threaded ends are 5/8″-18

KEY SPECS
MFG. Part #	005-93343-220
Brand	Sweet Manufacturing
Rack Type	Power

GENERAL
Turns Lock to Lock	4
Spline Count	30
Spline End	3/4″-30
Sold in Quantity	Kit
